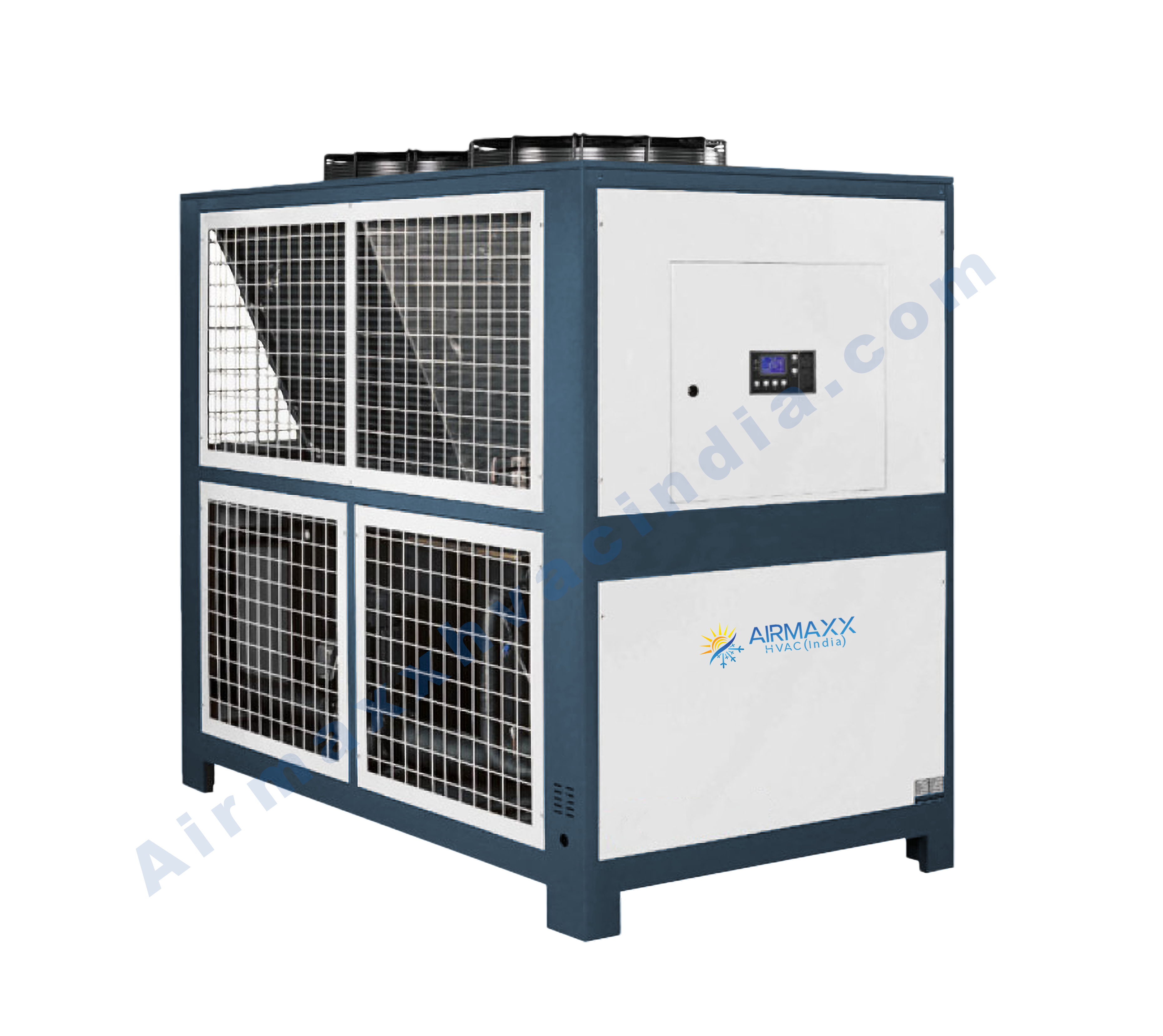

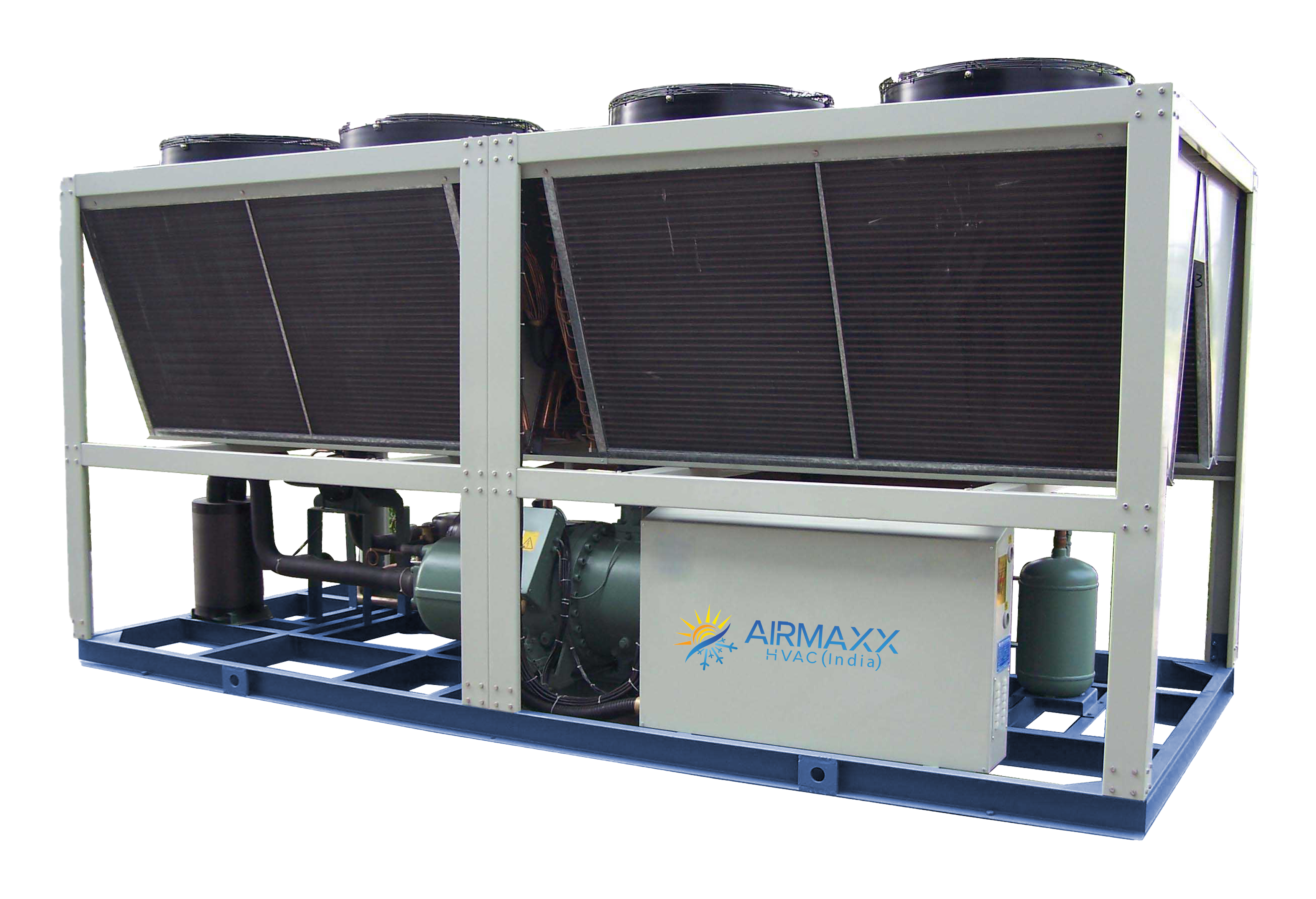

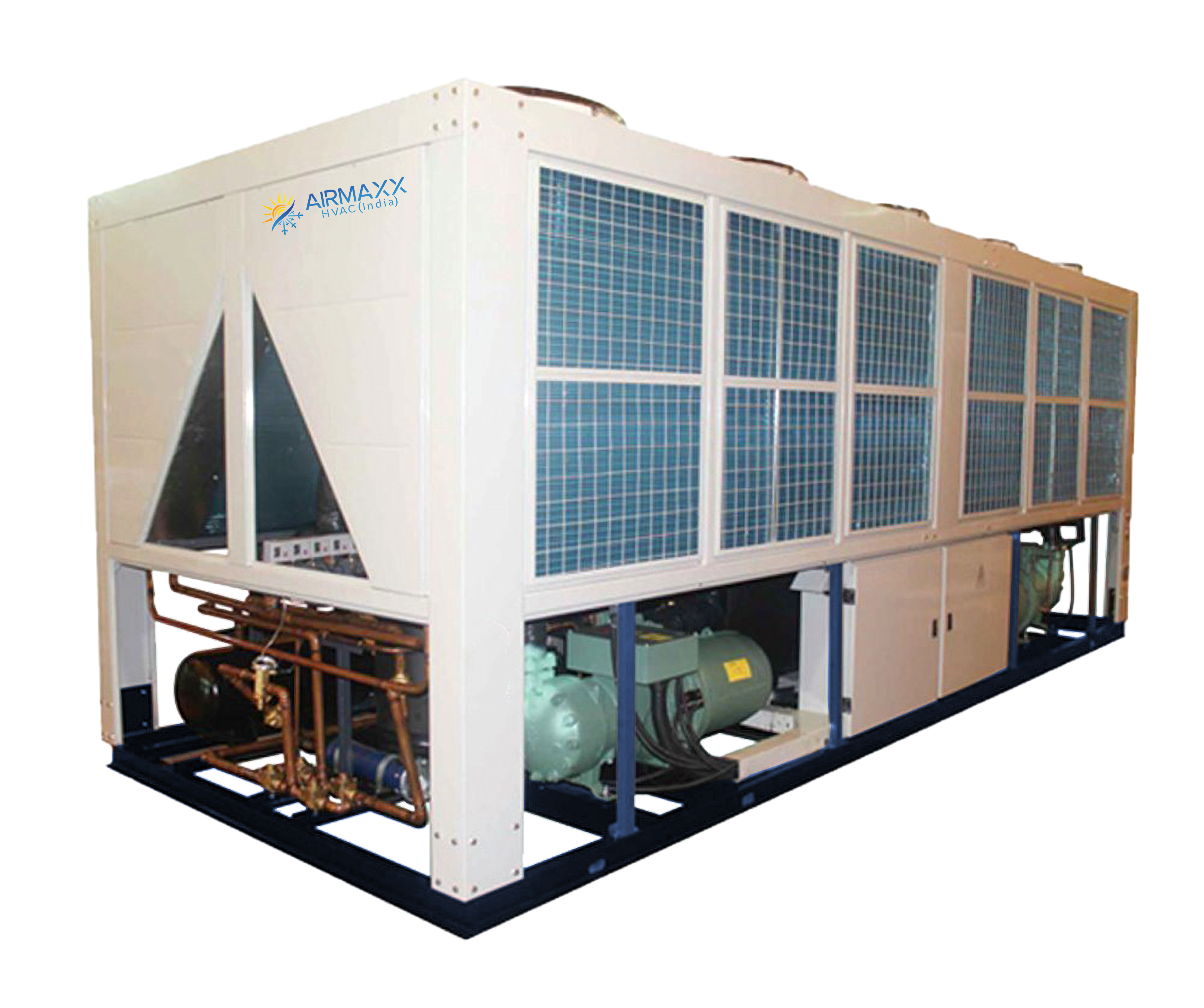

Air Cooled Package Chiller
Standard Features
- Controls: Electronic programmed temperature controller with constant (set point & process) temperature readout.
- Also offered with PLC panel board with Pressure transmitter for HP/ LP readings with cutout/cut-in.
- Refrigeration Components: Efficient scroll compressors,sight glass/moisture indicators, balanced port expansion valves,filter drier,pump down valves,fan cycling head pressure controls
- Airmaxx chiller is protected with accumulator and our condenser are 4 row with coil face area of 1.5Sqft per TR to maintain high pressure below 300 PSIG in peak summer.
- Our condenser and finned immersion chiller are inner grooved copper pipe for better efficiency.
- For higher capacity chiller is provided with Oil separator to ensure of oil flow to the compressor.
- Airmaxx chiller is in-built SS-304 tank with PUF insulation.
- Process Fluid Components: Bronze valves. Pumps are Monobloc. Tanks are insulated with lid, fill port, and level sight glass. Portable systems will include a bypass flow valve.
- Safety Controls: High/low pressure refrigerant pressure, freeze, low water flow, overloads for compressor and fan motors, safety MCB’s and overloads for pump.
- Construction: Welded GI steel powder coated frame and full metal cabinet, copper piping connections.
- Warranty: One year parts.
Description
AIRM AXX HVAC INDIA package scroll chiller is designed by professionally qualified engineers in this field. While on one hand our chillers are tropicalized to suit Indian conditions and on the other hand, they incorporate with s ta te of the art features to enhance their performance. The system is designed in a compact, uncluttered, and easier for servicing. so here is wishing you cool days ahead for your equipment.
The chiller can be designed with any combination as an option like Hermetic / Semi Hermetic / Open type compressor or Aircooled / water-cooled condenser or shell & tube chillers / Plate Heat Exchanger. Our other type of chiller

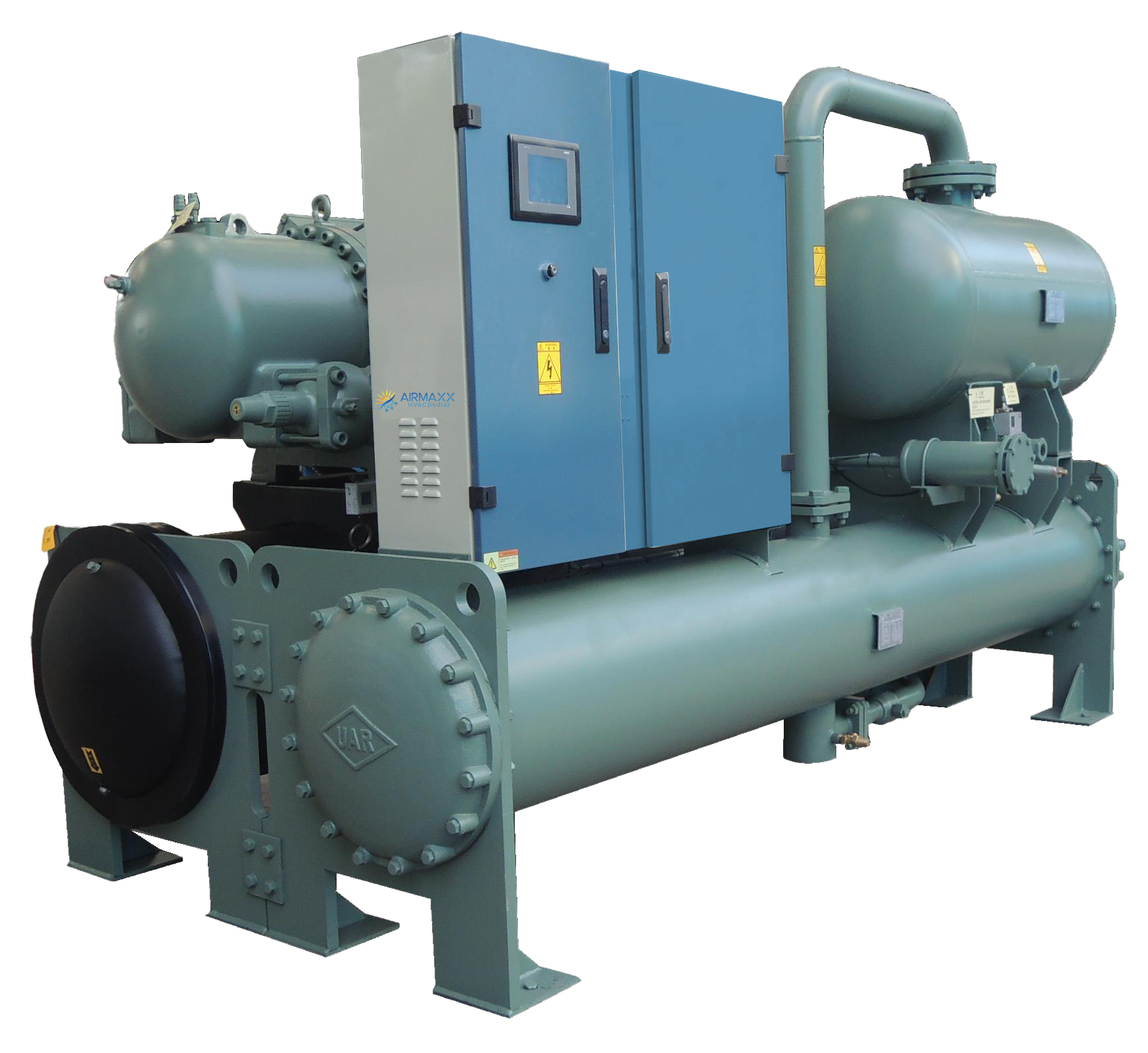

- SCREW Chiller
- RECIPROCATING Chiller
- BRINE Chiller
- OIL Chiller
- ONLINE Chiller
